*The carriage in the picture is sold separately.

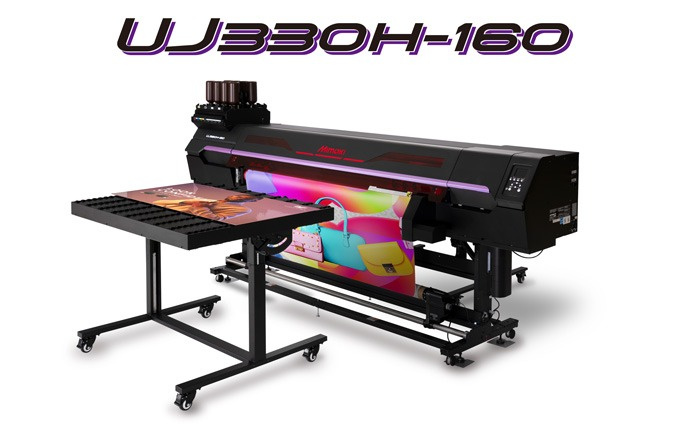

UJ330H-160 | Product information
Nagano, Japan, March 3rd, 2026
Mimaki Engineering Co., Ltd. (Headquarters: Tōmi City, Nagano Prefecture; President and CEO: Kazuaki Ikeda) announces the launch of the hybrid UV inkjet printer "UJ330H-160" as a new 330 series large-format graphic inkjet printers.
Our flagship line, the "330 Series," has contributed to the expansion of our customers' businesses with its high image quality and high productivity, and has been highly praised by production sites around the world.
We have developed the UJ330H-160 in order to offer its outstanding image quality and high productivity to even more customers. This product supports direct printing of rigid (board) materials in addition to output to roll materials. The hybrid UV printer, which realizes roll and rigid output in a single unit while suppressing space restrictions and expensive capital investment, is positioned as "Next Standard" for graphic production sites such as sign makers and commercial printers.
This product is designed to switch between roll and rigid output quickly and easily, increasing production efficiency. It can flexibly handle various materials and applications even with limited personnel and space without using different equipment for each application.
In order to achieve stable output to various roll materials, this product uses a newly developed belt transport system (Figure 1). Thin films and fabrics, which were difficult to handle with the conventional transport method using grit rollers, can be transported stably while suppressing the occurrence of loosening and wrinkles (Figure 2). As a result, by enabling applications such as window graphics and fabric signage, comprehensive proposals for exhibition booths and retail spaces become possible.
In addition, this transport system also provides high stability when outputting rigid materials. The Auto-Vacuum and front and rear lock roller units (Figure 3) allow stable transport of large and thick materials, such as up to 4x8 size*1 aluminum composite plates and 2-inch thick foam board (Figure 4). Rigid production, which has traditionally relied on mounting processes and outsourcing, can be shifted to an efficient, fully in-house production system.
*1 Approximately 1.2 m x 2.4 m, one of the standard sizes of signboard materials
Figure 1: Newly Developed Belt Conveyor System

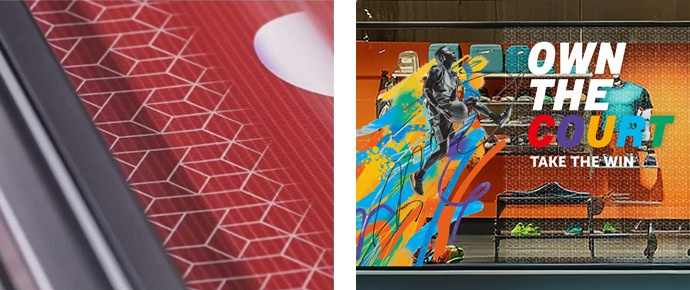

Figure 2: Left: Transport of thin film / Right: Application of window graphic

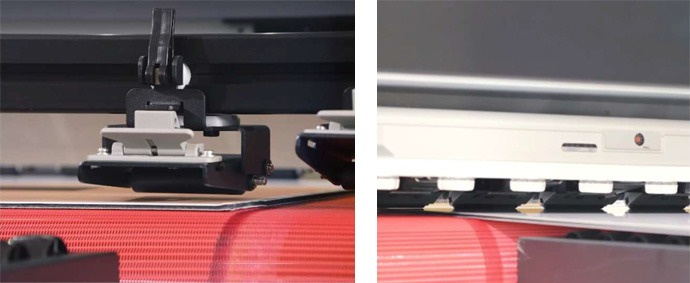

Figure 3: Lock roller units installed in the front and back of the belt transport system. Left: Power lock roller / Right: Rear lock roller

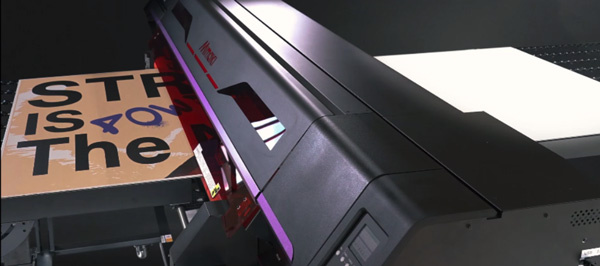

Figure 4: Output to 4x8 size aluminum composite plate
In terms of image quality, the printer is equipped with a print engine that combines a high-density, high-definition print head and proprietary image quality control technology to deliver industry-leading image quality. From uniform solids to smooth, subtle gradients, it faithfully reproduces with high productivity with a practical throughput of 14.0 m²/h*2, enabling graphic production that capture the attention of people passing by.
*2 When using CMYK + White + Clear or CMYK LcLm + White ink set
In addition, the automatic adjustment function has been evolved so that this high image quality can be reproduced stably without special skills. Optimal condition can always be maintained with simple operation ensuring high production efficiency and consistent quality regardless of operator experience.
Furthermore, the UV ink used in this product is designed to be free of SVHC*3 and CMR*4, ensuring industry-leading safety. Contributes to a workplace that is safe for both operators and the environment, while also anticipating compliance with global environmental regulations.
*3 Substances of concern specified in the European REACH regulations that may have a significant impact on human health and the environment
*4 Acronym for carcinogen, mutagen, and reproductive toxicant
Moreover, by integrating the RIP software "RasterLink7," which enables consistent control of high-value printing such as UV-specific multilayer and high-build effects (Figures 5 and 6) and gloss/matte finishes using clear ink (Figure 7), with the cloud-based monitoring tool "PICT," which visualizes output status, it provides comprehensive support from printing through management. The product streamlines production site operations, making them simpler and more efficient, while supporting the development of customers' production environments.
Figure 5: Example of multi-layered printing (five layers) | A single signature can be used to appeal both indoors and outdoors.
Figure 6: Example of emboss printing | Textured effects such as fabric weaves and zipper details can be reproduced.
Figure 7: Left: Example of gloss tone / Right: Example of matte tone
Sales of the UJ330H-160 hybrid UV inkjet printer are scheduled to begin in April 2026 and is expected to sell 400 units a year worldwide.
This product will be exhibited at major exhibitions in each country, including those listed in the table below.
| Name of Exhibition | Country / Region | Date | Place |
|---|---|---|---|
| JAPAN SHOP 2026 The International Exhibition for Shop Systems and Fixturing | Japan / Tokyo | March 3rd ~ 6th | Tokyo Big Sight, West Hall |
| APPP EXPO 2026 | China / Shanghai | March 4th ~ 7th | National Exhibition and Convention Center |
| ISA International Sign Expo 2026 | USA / Orland | April 8th ~ 10th | Orange County Convention Center |
| FESPA Global Print Expo 2026 | Spain / Barcelona | May 19th ~ 22nd | Fira Barcelona Gran Via |
Mimaki Engineering Co., Ltd. with its management vision of "Something New, Something Different," will continue to pursue new technological innovations to achieve the "Next Standard" that our customers demand.
Main Specifications
| Items | UJ330H-160 | |
|---|---|---|
| Print Head | On-demand piezo print head | |
| Print resolution | Y : 600, 1,200 dpi, X : 600, 900, 1,200, 1,800 dpi | |
| Ink | Type/Color | ELS-170 / ELS-175*5: C,M,Y,K,Lc,Lm,W,CL LUS-210*5: C,M,Y,K,W |
| Contents | 1L bottle | |
| Maximum print width | 1,610 mm (63.4") | |
| Media (Roll) | Maximum media width | 1,620 mm (63.8") |
| Diameter | 250 mm (9.8") or less | |
| Weight | 45 kg (99 lb) or less | |
| Media (Rigid) | Supported media length | 280 mm ~ 2,500 mm (11" ~ 98.4") |
| Thickness | 50.8 mm (2") or less | |
| Weight | 25 kg (55.1 lb) or less（7 kg (15.4 lb)/m² or less） | |
| Interface | Ethernet 1000 BASE-T (Recommended), USB2.0 Hi-Speed | |
| Power specification | Single phase AC100-120V±10% /8A or Single phase AC200-240V±10% /4A, 50/60±1Hz x2 | |
| Power consumption | 800W x2 (Maximum), Inlet1 400W / Inlet2 500W (Average running), 4.5W or less x2 (Standby) | |
| Certifications | ETL IEC 62368-1, CB, CE (EMC, Low voltage, Machinery directive, and RoHS) REACH, VCCI Class A, FCC Class A KC, RCM, EAC, UKCA, EnergyStar | |
| Dimensions (W×D×H) | Main unit: 3,225 x 785 x 1,420 mm (126.9 x 30.9 x 55.9") Main unit + 1 Transport stand set: 3,225 x 2,664 x 1,420 mm (126.9 x 104.9 x 55.9") Main unit + 2 Transport stand set: 3,225 x 4,712 x 1,420 mm (126.9 x 185.5 x 55.9") | |
| Net Weight | 386 kg (851 lb) | |
*5 ELS-175 and LUS-210 are inks sold in specific countries and regions.
*Specifications, designs, dimensions, and other information stated in this list may be subject to change without notice due to technical improvement etc.
